The mining sector relies heavily on pneumatic force. Operators use pneumatic rock drills for blast hole drilling. However, these machines generate severe acoustic energy. Unmuffled drills emit noise levels up to 115 decibels. This creates extreme occupational hazards for workers. Therefore, finding a reliable NS36 Muffle Box is vital. It offers a highly effective and best priced noise attenuation method.
The True Impact of Rock Drill Noise
Historically, mines treated extreme noise as a normal byproduct. Operators only received basic hearing protection. Mines focused heavily on post-incident medical compensation. Modern science now shows a compounding cost on productivity. High noise levels degrade cognitive function and fleet efficiency. For example, sustained noise causes severe biological stress. This stress accelerates fatigue and reduces manual drilling precision. Consequently, mines experience misaligned blast holes and longer cycles. Workers also reach their maximum safe noise dose quickly. Specifically, this takes just 28 seconds at 115 decibels.

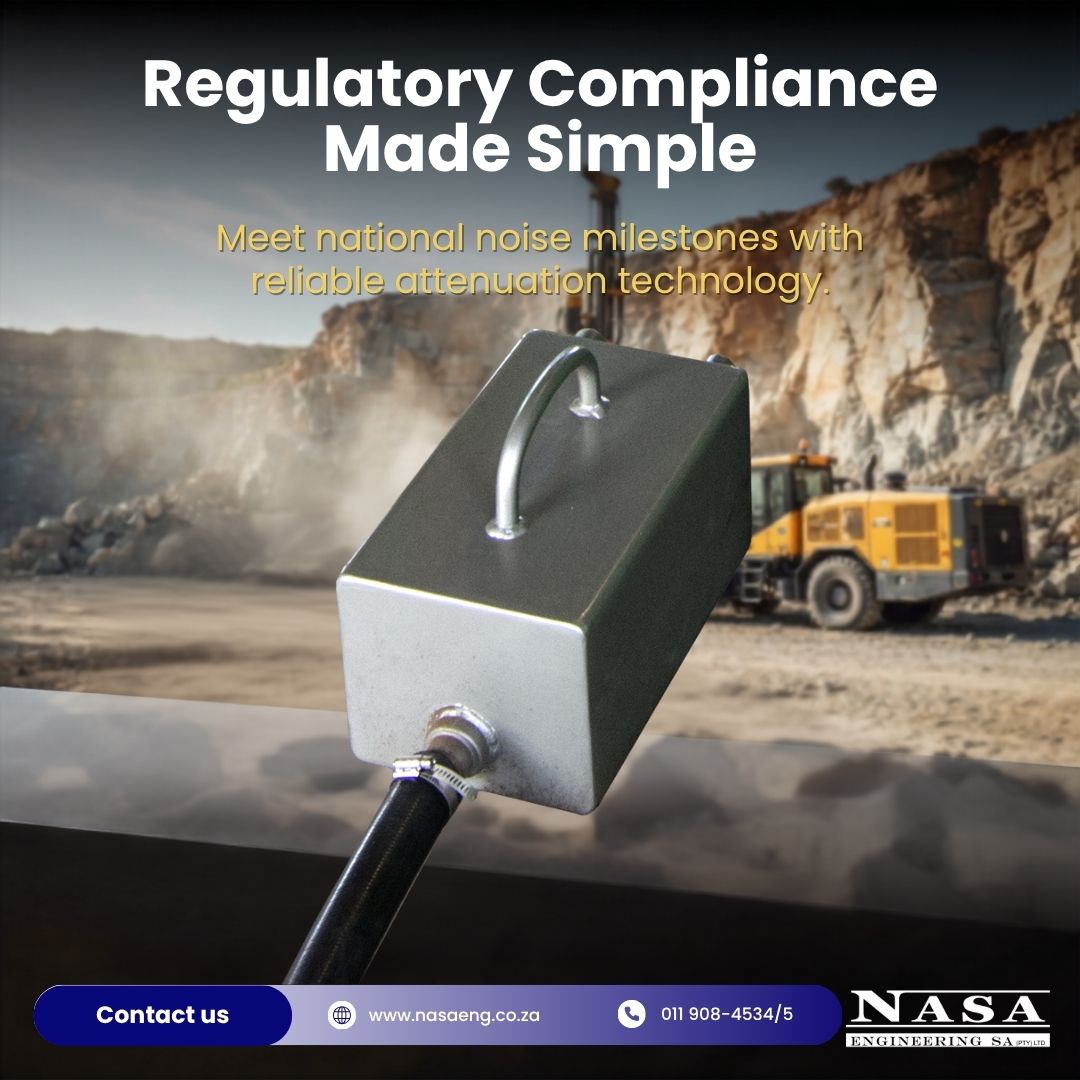

Regulatory Changes for the NS36 Muffle Box
South Africa has transformed its occupational noise regulations. The Mine Health and Safety Council established rigid milestones. They partnered with the Minerals Council South Africa for this initiative. A key directive limits equipment noise to 107 decibels. Mines must meet this target by December 2024. Additionally, equipment must not exceed 104 decibels by 2034. Compliance requires highly specialised acoustic interventions. Previously, mines used bulky contraptions to muffle drills. These barriers restricted exhaust flow and throttled systems. They caused internal mechanisms to freeze mid-operation. The industry needs a modern, integrated engineering solution.

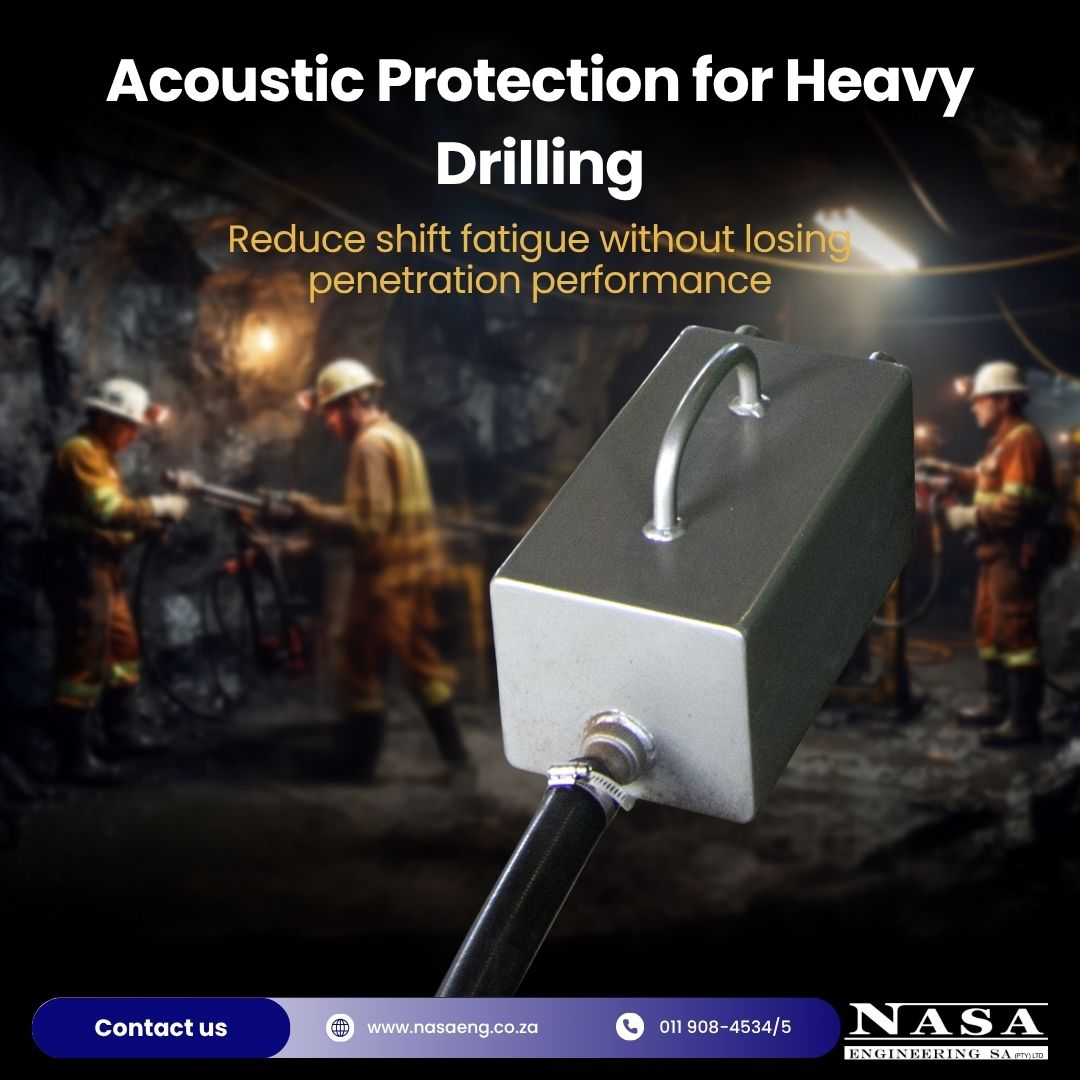

How the NS36 Muffle Box Works
Progressive engineering firms now use advanced acoustic displacement technologies. The NS36 Muffle Box sets the benchmark in Southern Africa. Engineers designed this system specifically for the NS36 range. The NS36 rock drill features a large 114 mm bore. It requires a massive volume of compressed air. Consequently, the exhaust air pulses are inherently violent. The NS36 Muffle Box solves this mechanical paradox effortlessly. It uses an automotive style silencer chamber. A large diameter flexible hose connects this to the drill. This decoupled design provides near zero backpressure for the unit. It handles the full volumetric flow without restriction. The drill maintains its optimal striking velocity and penetration rate. You can read more about surface drilling operations.
Improving Operator Safety and Focus
The flexible hose positions the silencer away from operators. Sound intensity drops significantly as physical distance increases. Moving the exhaust reduces the perceived decibel load drastically. Advanced muffling drops raw acoustic output to 103 decibels. This protects the operator and ensures strict regulatory compliance. Additionally, reduced noise prevents severe occupational cognitive fatigue. Read more about cognitive fatigue in mining environments. Operators maintain better focus and apply correct feed pressure. Lower noise levels improve situational awareness underground. Workers can hear approaching vehicles and critical safety alarms. This drastically reduces the risk of fatal collision incidents.

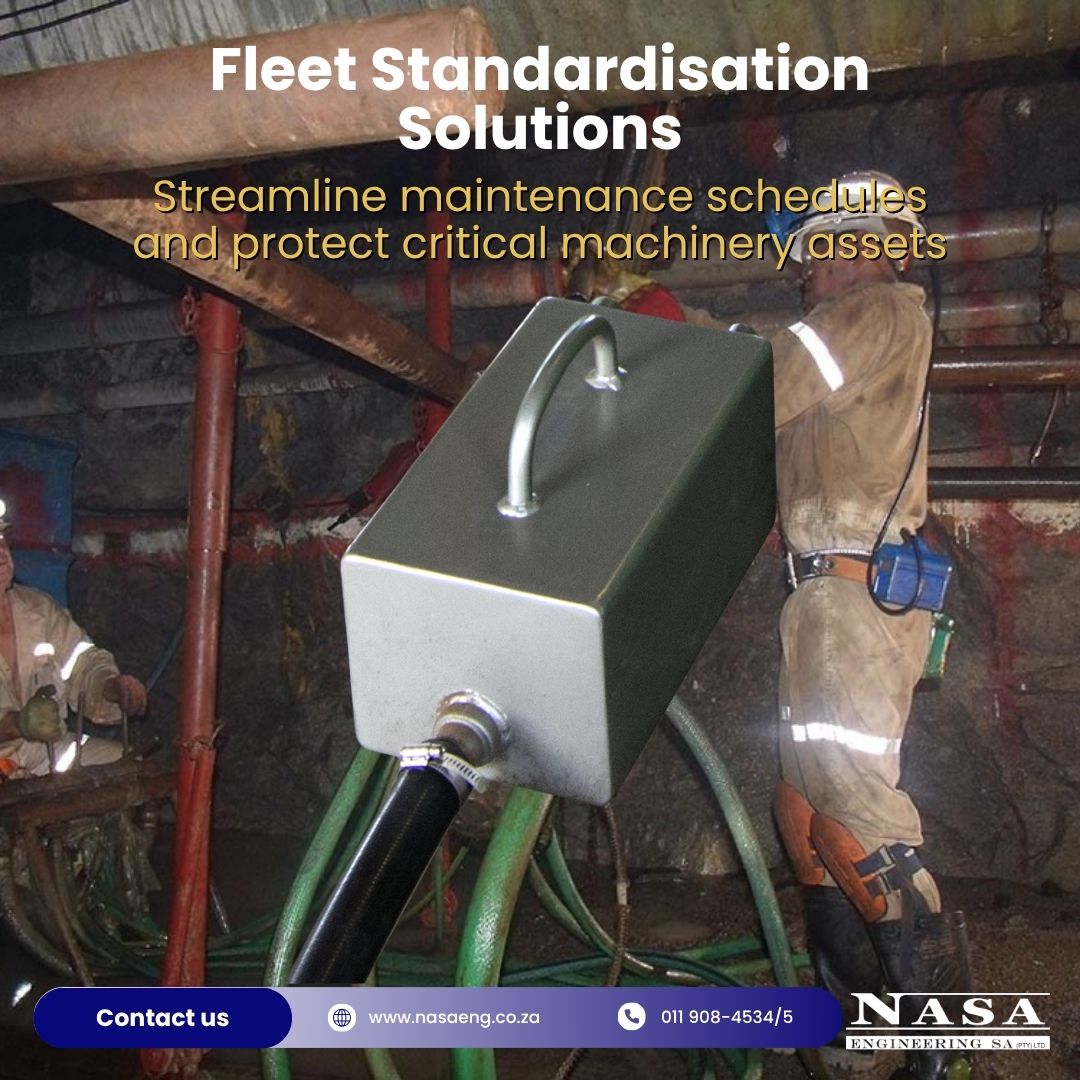

Fleet Standardisation for Maximum Output
Standardising noise control across your fleet offers major benefits. Mixed acoustic fleets create logistical and legal liabilities. Conversely, a uniform fleet provides a predictable operational environment. It allows safety officers to baseline the drill population. Standardisation also transforms fleet maintenance and lifecycle management. Maintenance crews require less training for unified equipment profiles. Inventory complexity drops significantly in the stores. You can explore our complete product catalogue for consistent options. Discard analysis becomes much more effective across standard fleets. Engineers identify wear patterns to prevent catastrophic machine breakdowns. This minimises downtime and streamlines spare parts procurement.
The Most Cost Effective Solution
Operations must reduce the total cost of ownership. Sourcing non-OEM spares seems like a rapid alternative. However, inferior parts lead to massive production losses. A slightly out of spec piston creates uneven internal wear. This causes premature breakdown and halts drilling entirely. The NS36 Muffle Box is the most cost-effective solution. It demands a highly modest initial capital investment. Long term economic gains directly impact the mine profitability. Precision parts protect machinery from severe operator abuse. Therefore, authentic OEM machinery keeps drills at the rock face.
Engage With an Official Distribution Agency
NASA Engineering SA manufactures these robust mining components. The facility machines parts to exact, reliable tolerances. They supply the domestic and international mining markets successfully. Protecting your workforce ensures long term financial profitability. Request a formal quote for your rock drill fleet today. Our team will assist with a complete RFQ capture. Please contact us to discuss your operational requirements.
